ORANGE5 PROGRAMMER - FULL
Orange5

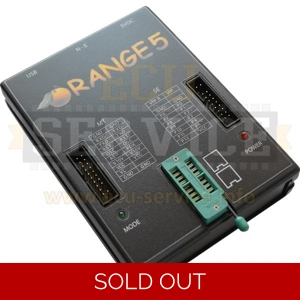

Orange5 is a professional programming device for memory and microcontrollers. Unique feature of the current series programmers is built-in macro-language for writing down protocols, which gives fast and easy capability to add new types of micro-schemes, precisely meeting manufacturers' requirements to read/write algorithms. This set contains most of the popular adapters and is one of the most flexible EEPROM/ FLASH programmer, a powerful tool in your hands.
Technical Info:
- Connection and power via USB interface (USB2.0)
- Universal easy to plug panel ZIF16 for EEPROM
- Control of contacts in the sockets
- Two expansions connectors compatible with Orange4 and Omega MTRK
- Protection against overcurrent
- Overload voltage protection
- Two types of power supply: Standart (USB) and enhanced (USB + external power supply)
- Three adjustable voltage and current control: Voltage of power supply ( 2.0...5.0V ), programming voltage (2.0...21.0V), additional fixed 10V for microcontrollers.
- High-speed bidirectional pin drivers with adjustable voltage (2.0...5.0V)
- Oscillator clock generator with frequency ( up to 24 Mhz) and out voltage (2.0...5.0V) adjustment.
- Capability of functional emulation of USB CDC devices.
- Built-in 32-bit virtual machine
- Supported interface: I2C, SPI, MicroWire, JTAG, UART, BDM, ISO7816, K-LINE (via adapter), CAN (via adapter);
- plastic case.
Software
- Maximum buffer size - 32Mb;
- Users can create own HPL modules;
- Edit 8 and 16 bits HEX values, as well as ASCII.
- Read and write files in BIN, HEX, S19 formats;
- Visual compare mode with highlight values;
- Write all chip or marked area;
- Support for multiple configuration files;
- Auto-save backups;
- Extended set of operations on the buffer;
- Works under Windows XP (32 bit).

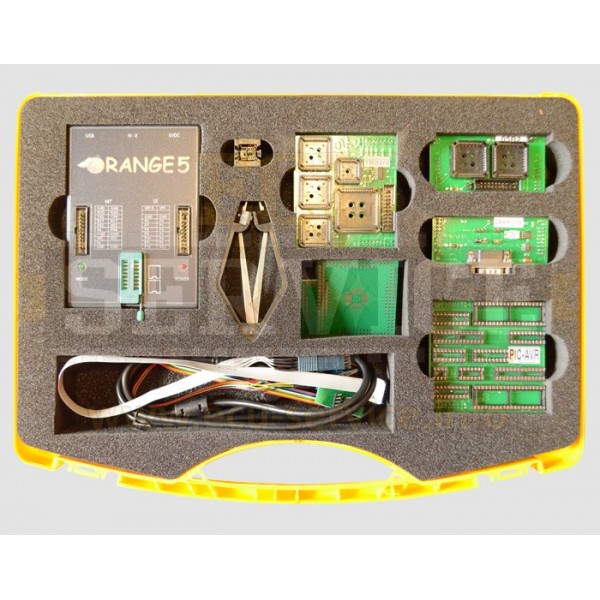

Set contains:
-Orange5 device
-Orange5 Software
-Orange5 USB base + Motorola license
-USB cable
-SOIC8 clip POMONA with leads
-DIP8 clip POMONA with leads
-PLCC extractor

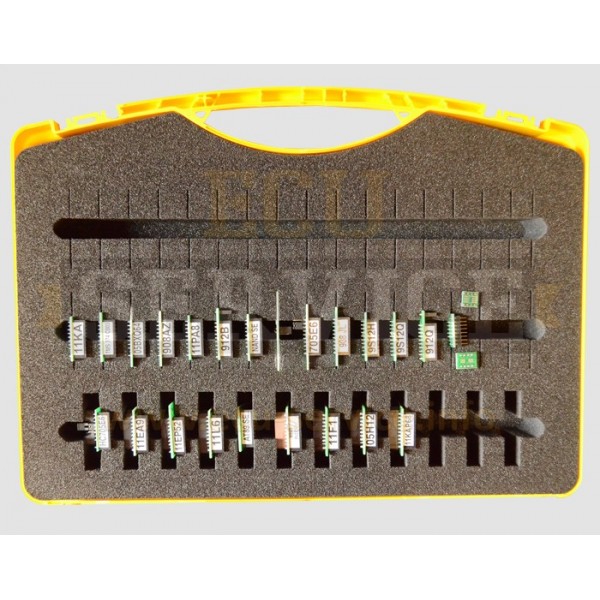

Adapters in FULL set
05BP2 |
Motorola 68HC05B6/HC05B8/HC05B16 and 68HC705B16/HC705B32 (PLCC52) |
|
05H12 |
for MC68HC05H12 PLCC52 |
|
HC705E6 |
socket adapter |
|
705E6 |
For MCU 68HC705E6/HC05P3/HC705P3 SOIC28 and QFP44 (solder). Switching between the 05P3 and 705P3/E6 jumper on the board. |
|
05BXQ64 |
For MCU 68HC05B16/B32, 68HC05X16/X32 QFP64 (solder) |
|
908AS |
For MCU 68HC08AS20, 68HC908AS32, 68HC908AS60 PLCC52 |
|
908AZ |
For MCU 68HC908AZ32/AZ60/AS60 QFP64 (solder) |
|
908JL |
For 68HC908JL3,908JL8 DIP28,SOIC28,QFP32 (solder). |
|
11EP52 |
For MCU 68HC(7)11A1,A8,E9,E20 (PLCC52) |
|
11EA9 |
For MCU 68HC11EA9 (PLCC52) |
|
11F1 |
For MCU 68HC11F1 PLCC68 |
|
11L6 |
For MCU 68HC11L6 PLCC68; |
|
11KA |
For MCU 68HC11K/KA QFP (solder) |
|
11PA8 |
For MCU 68HC11PA8 and 68HC11E9/E20 QFP64 (solder) |
|
11KAP68 |
for MC68HC11KA2/KA4 (PLCC68) |
|
912B |
912Q - for 912Dxxx QFP80,QFP112 (for soldering) |
|
912Q |
912Q - for 912Dxxx QFP80,QFP112 (for soldering) |
|
9S12H |
For MCU 9S12H/HZ/XHZ QFP80,QFP112 (solder) |
|
QFP64U |
Universal For MCU QFP44/QFP64 pitch 0.8mm (solder) |
|
QFP80U |
Universal For MCU QFP80 (solder) |
|
QFP144U |
Universal QFP100,QFP144 0.5mm, QFP112 0.65mm (solder) |
|
SOIC8-DIP8 ZIF |
Adapter for microschemes in SOIC8-DIP8 |
|
SOIC8-16 |
SOIC8-16 solder pitch 1.27mm |
|
SSOP8 |
For chip SSOP8 pitch 0.65 mm (solder) |
|
O5TMS |
For Texas Instruments TMS370/TMS374/TMS375 |
|
TMS374C003 |
For TI TMS374C003A (solder) - work only with Adapter O5TMS. |
|
PICAVR |
For Microchip PIC12,PIC16 and Atmel AVR |
|
AT89 |
For Atmel AT89C2051, AT89C4051 |
|
NAND |
For NAND FLASH Samsung, Hynix... TSOP44, TSOP48 (solder) |
|
ST62 |
for MCU ST62 PQFP52, PQFP80 (solder) |
|
Adapter CAN K-Line |
Interfaces CAN and K-Line |
|
9S12Q |
9S12Q - for 9S12Dxxx QFP80,QFP112 (for soldering) |
|
PCF7941 |
Adapter PCF7941 |
|
TSOP8I |
Adapter TSOP8I |
